Infrastructure and limestone wall

Client - Contractor X Webflow Template
Client
Private
Location - Contractor X Webflow Template
Location
Elora
Surface Area - Contractor X Webflow Template
Floor Area
Property
Category
Infrastructure

About the project

To install site services (water (drilled well), hydro, fiber optic cable, natural gas) and entry wall at front of riverfront property in Elora in preparation for the construction of a home in the future.

Project scope

The project involved:

·      Install new hydro service with transformer vault to allow for up to four 200-amp services in the future. Also, install temporary electrical panel to facilitate construction and operation of electrical at front entry wall

A wooden pole in the snowAI-generated content may be incorrect.
A black and orange wires in a white boxAI-generated content may be incorrect.

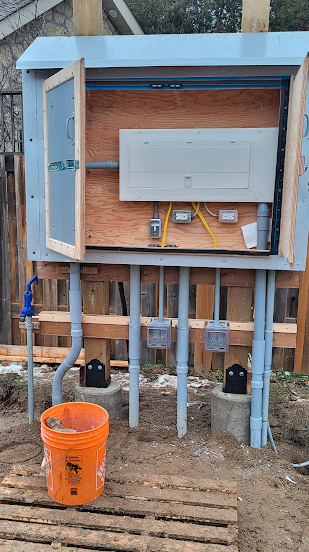

A box with wires and pipesAI-generated content may be incorrect.

·      Install new gas service to property (no photo included)

·      Install new drilled well to provide domestic water supply

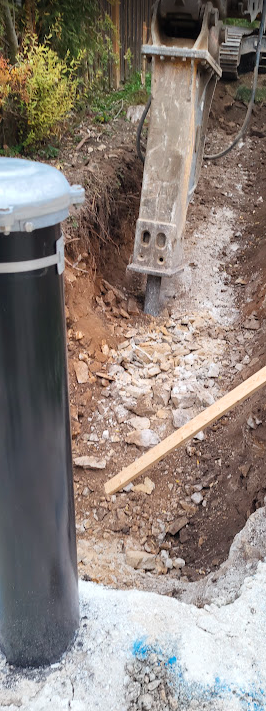

A hole in the ground with a pipeAI-generated content may be incorrect.

·      Extend fiber optic cable to new temporary electrical panel to enable camera and gate controls to operate and to be extended into future home (no photo included)

·      Extend all service pipes to near where future house will be constructed

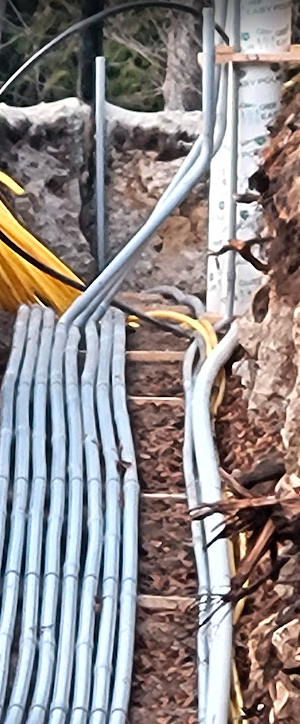

A close-up of pipesAI-generated content may be incorrect.

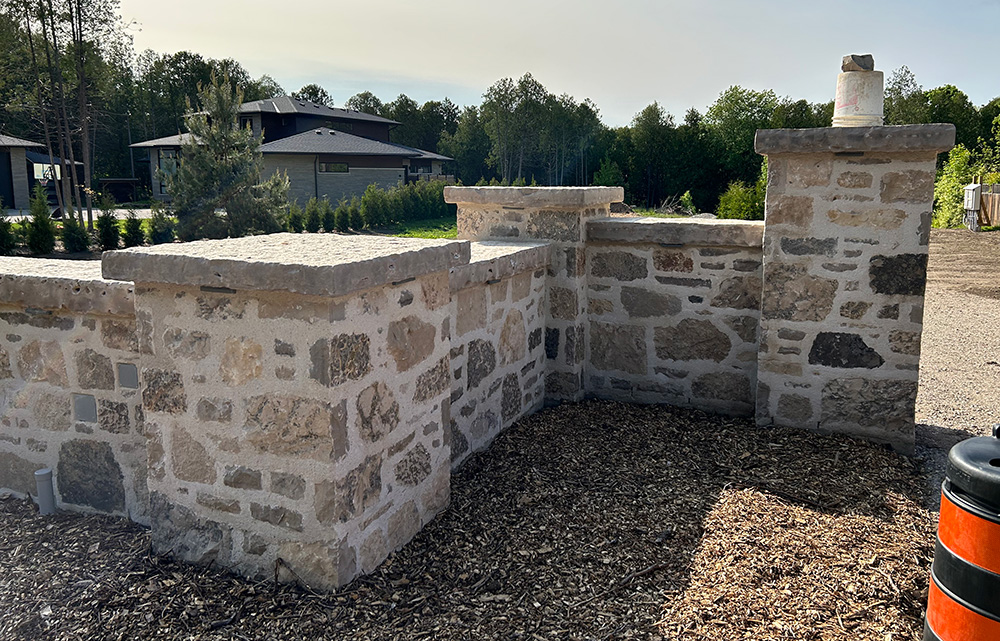

·      Construct natural limestone entry wall with the following features:

       i.         Heavy duty supports for future large automatic swinging vehicular gates and pedestrian gates

A construction site with a ladder and construction equipmentAI-generated content may be incorrect.

         ii.         Small courtyard for dropping off parcels with pedestrian access gates to property

A stone wall in the snowAI-generated content may be incorrect.

      iii.         Gas light fixtures roughed in on top of pillars on each side of vehicular gates (no photo included)

     iv.         Hose bibs to both sides of driveway at front entry wall

A pipe next to a wallAI-generated content may be incorrect.

     v.         Allowing future services to pass under wall or across driveway at front entry wall

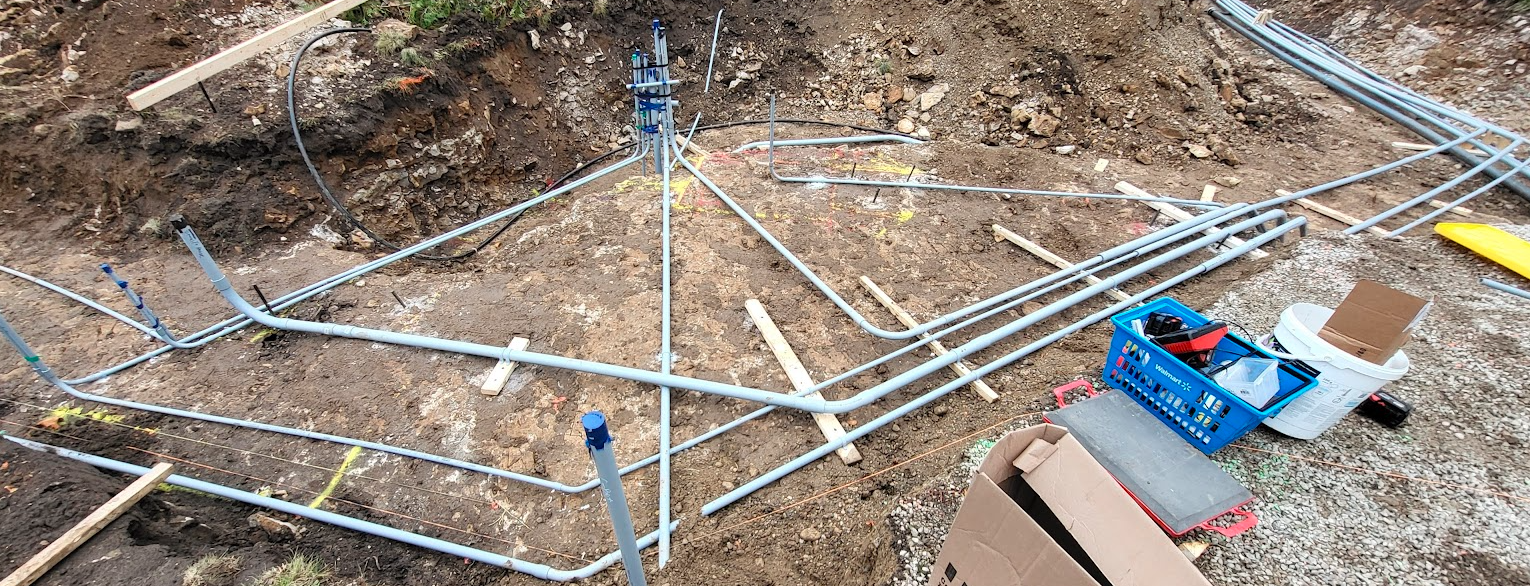

A close-up of pipes in the groundAI-generated content may be incorrect.

                   vi.         Allow for cameras on entry wall at several locations (no photos included)

                 vii.         Allow for future gate entrance control pedestal for property entry

A construction site with a pile of dirt and a construction vehicleAI-generated content may be incorrect.

               viii.         Allow for future vehicle sensitive pads to allow gate to open automatically from the inside (no photo included)

                   ix.         Allow for water to move freely from front to backside of entry wall foundation

A stone pillars in the snowAI-generated content may be incorrect.

                     x.         Central communication box on backside of entry wall

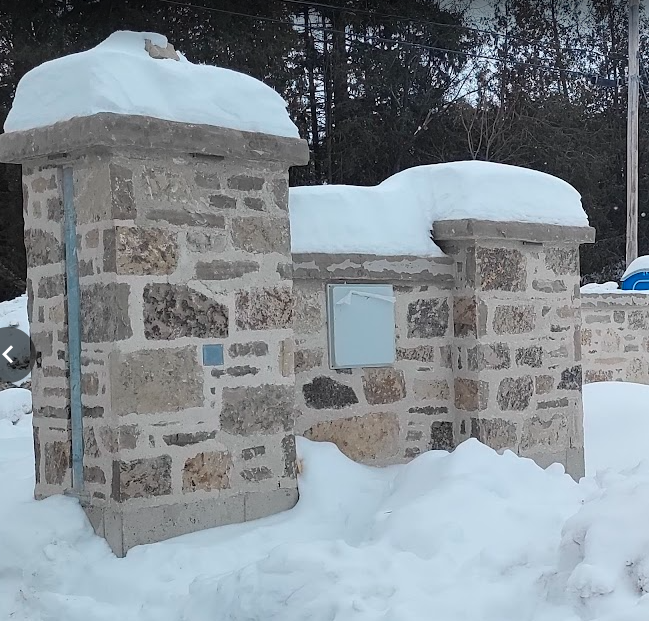

A stone structure covered in snowAI-generated content may be incorrect.

                   xi.         Central electrical box on backside of entry wall (no photo included - similar to photo above)

This careful planning and construction effort to create a beautiful natural limestone entry wall at the front of the property and site services in preparation for construction of future home, garage, workshop and additional residential unit that ties in nicely with the neighbouring properties:
